Assembly instructions for Cruise Control Adapter Energica

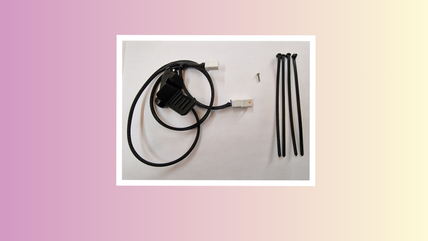

Material (content)
1 x Cruise Control Adapter
4 x Cable Ties
1 x Screw
Necessary tool
Allen TRX6
Allen hexagon 3
Assembly Instructions
1.

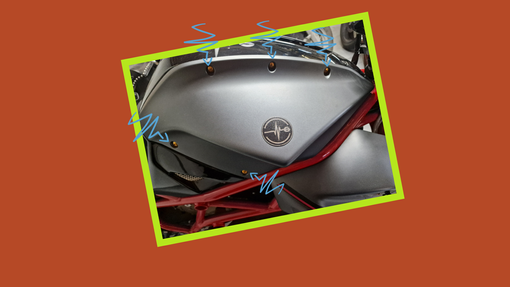

Using a 3mm Allen key, loosen the 5 screws on the right hand side panel of the motorcycle.
Carefully remove the cover.
3.

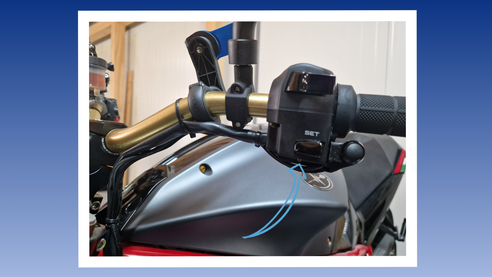

Identify the cruise control adapter plugs and connect them to the motorcycle's original plugs.
5.
Tighten the screw on the front of the part with a TRX6 wrench.
2.
Identify and disconnect the motorcycle's original 8-pin cruise control connector.

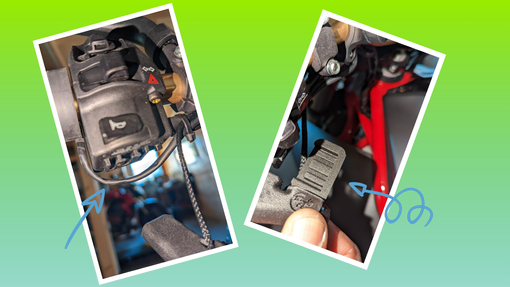

Slide the cruise control adapter into the appropriate slot under the left handlebar of the motorcycle. With heated grips, pay attention to the grip. Gently pull it into the appropriate slot during assembly.
6.
Reassemble the motorcycle side cover and tighten the appropriate screws.
For warranty reasons, we recommend having the Cruise Control Adapter installed by a service center or Energica representative.
The Cruise Control Adapter is guaranteed for 2 years against manufacturing defects.
Works on any Energica brand model until 2023.
